PVC Corner Bead With Fiberglass Mesh – Efficiency & Quality Construction

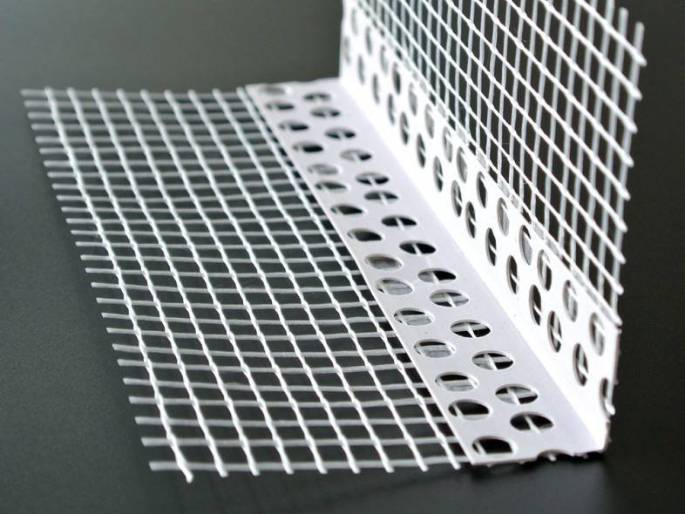

PVC corner bead with fiberglass mesh consist of perforated PVC corner bead and reinforcing fiberglass mesh. It is a specific product designed for all 90 °C angle constructions, including interior plastering, wall corner, arch, window, door and EIFS. Corner bead with fiberglass mesh is quick and effective for common corner construction problems, such as positive angle unstraight, unsmooth and the angle of the wall easily to be damaged.

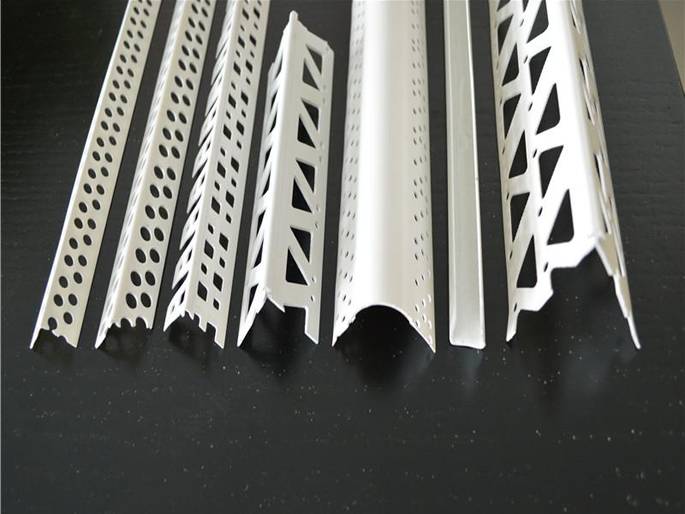

Round or square perforated openings on PVC corner bead are designed for easy operation of sealing onto the substrate. And the fiberglass mesh plays a reinforcement role that offers a added strength for the corner structure. Our corner beads are made of high-quality PVC material in accordance with EU standards and fiberglass mesh which are used for external wall insulation system. There are various styles available for different projects.

What Make the Product Sell Well?

  • Strong joint compound bonding.
  • Improve construction efficiency and quality.
  • Resistant to bumping and distortion.
  • Easy cutting, bending and high durability.
  • Environmental friendly and economical material.
  • Lightweight, not perishable and easy to install.

Specification

Material: PVC bonded with fiberglass mesh.
Hole type: round, square, diamond, hexagon, triangle, or customized.

PVC corner bead

Wing width: 18 × 18, 20 × 20, 21 × 21, 25 × 25, 30 × 30 mm.
Thickness: 1.0–2.0 mm.

Fiberglass mesh

Mesh size: 4 × 4, 5 × 5 mm.
Width: 100 mm.
Length (common): 2–3 m.
Weight: 60–180 g/m2.

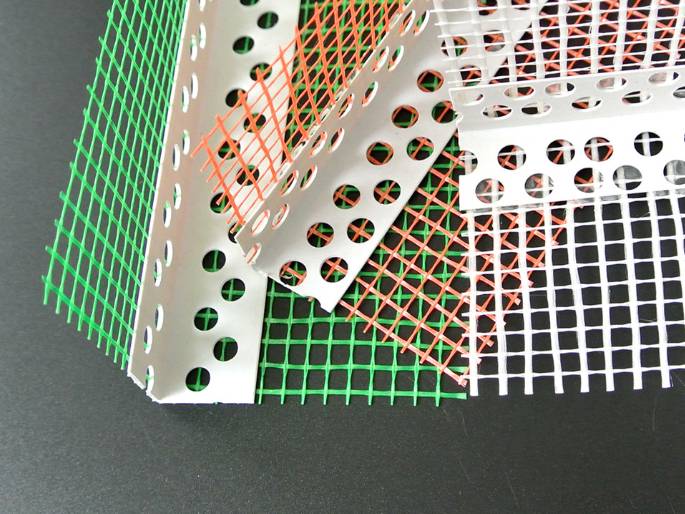

Color: white (standard), brown, blue, orange, or customized.
Package: 200 pcs/carton, first plastic film, then carton box or according to your requirement.

Application

EIFS.
Corners.
Kitchen angles.
Eave angles.

Stucco projects.
Plaster walls.
Ceiling corners.

Drywall.
Bedroom corners.
Doors.

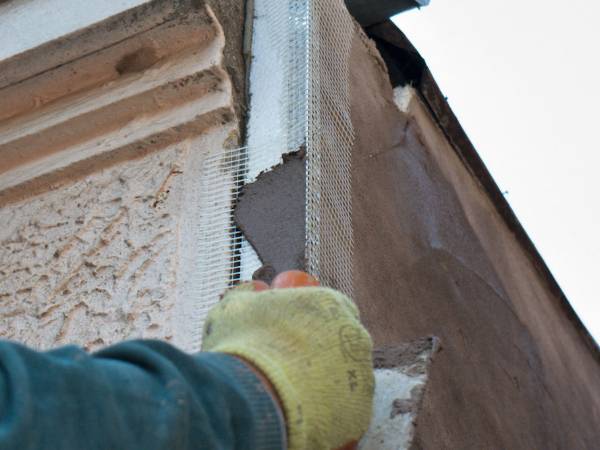

dm 20260607145513 001

PVC corner beads with fiberglass mesh for plaster

dm 20260607145513 002

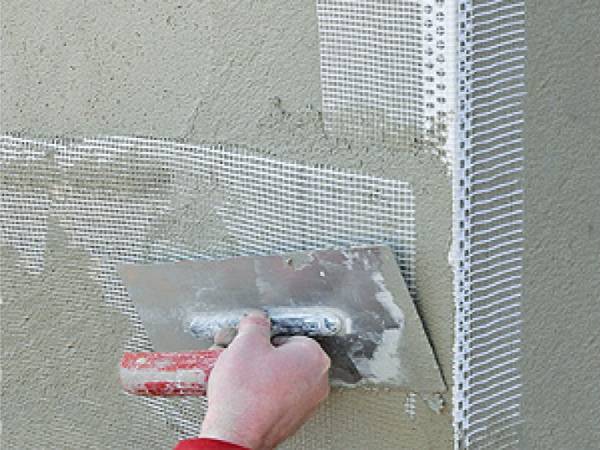

PVC corner beads with fiberglass mesh for external wall
dm 20260607145513 003

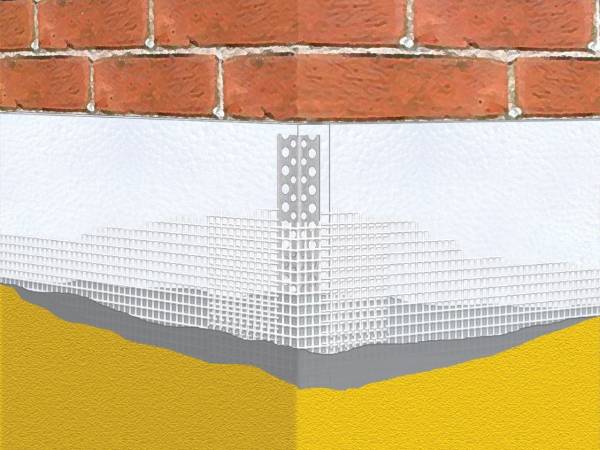

PVC corner beads with fiberglass mesh for EIFS

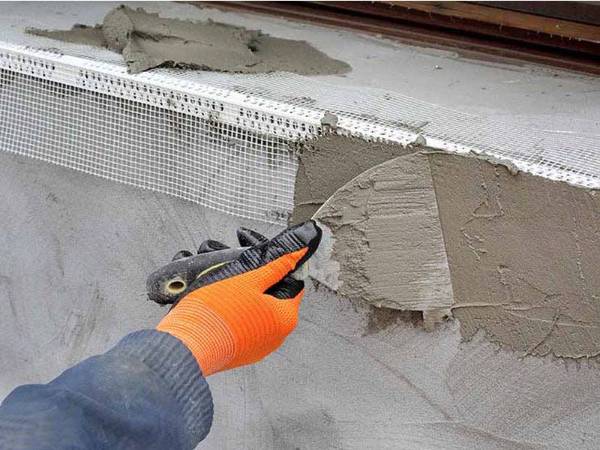

dm 20260607145513 004

PVC corner beads with fiberglass mesh for window

dm 20260607145513 005

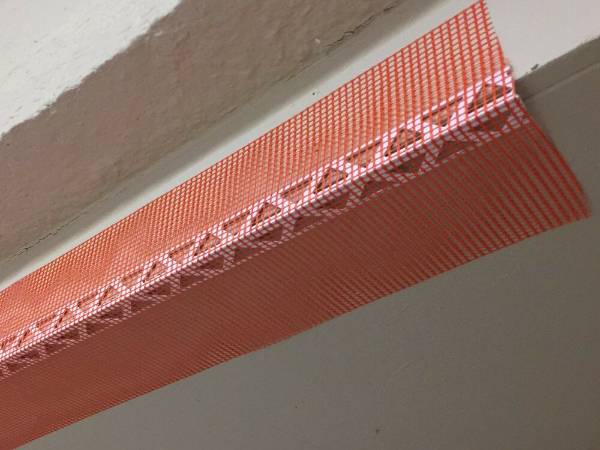

PVC corner beads with fiberglass mesh for door frame

dm 20260607145513 006

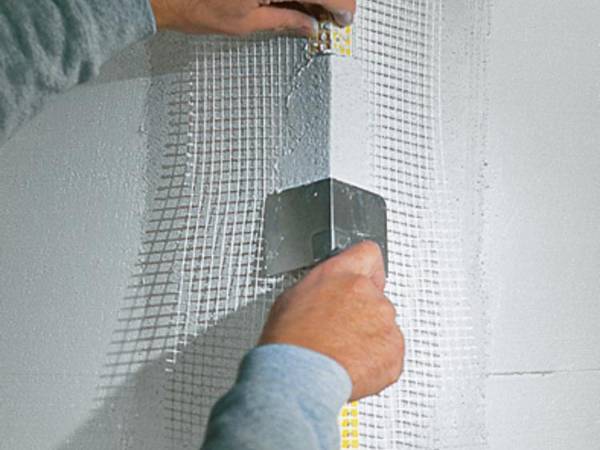

PVC corner beads with fiberglass mesh for internal wall
